@ 20MM_CARB   GREAT_FOR BIG_BORE 50'S_AND_70'S TL125'S   W/ BIG MANIFOLDS MANY_OTHER_APP'S (300012)

THIS HAS THE 48MM BOLT PATTERN

35MM REAR OD FOR AIR PIPE/FILTER


COMES WITH MAIN JET #73 & IDLE JET #34 INSTALLED

TAKES A 35MM AIR FILTER

THIS CARB USES OUR "SMALL KEIHIN MAIN JETS"

THESE HAVE HONDA CT90K2 TO 1977 TYPE IDLE JETS.(ON ORDER)

THIS CARB NEEDS OUR 300001.5 MANIFOLD TO WORK ON THE CT70'S YOU CAN THEN USE THE STOCK AIR FILTER OR CLAMP AN AFTERMARKET FILTER ON THE BACK. THIS WILL ALSO BOLT UP TO OUR BIG MANIFOLD (300002) AND THEN WITH A CLAMP ON FILTER FIT ON MOST 50'S AND 70'S

IF YOUR PUTTING THIS ON A CT70K0/HK0 K1 K2 OR K3 MODEL,, OUR CABLE 0013 WORKS WITH OUT MODS. (THANKS ENZO)

sometimes the inner cable length on the stock cable may be a little bit too long for the aftermarket carbs and not allowing for a complete throttle slide lifting, so you may want to get a solder on cable end so you can shorten it if needed... our number is (END)sold seperatly

Dear dratv,

the carb fit perfectly on my CL90. i did re-use the main jet as it was identical (except orifice size) but the idle jets were different lenghts so went with the one it came with. thanks

- gumpwood59

300012

@ e 21MM ID MANIFOLD FITS ALL CT70'S ,, HAS A 48MM BOLT PATTERN TO CARB  (300001.5) (S1383) (S1384)
@ SPACER CARB INLET OPENING EXTENDER FITS 30MM TO 37MM OD CARB MOUTH'S  1/17P (CARB/ADP/EXT) (S1383)
Click to enlarge
Click to enlarge
Click to enlarge
@ e 21MM ID MANIFOLD FITS ALL CT70'S ,, HAS A 48MM BOLT PATTERN TO CARB (300001.5) (S1383) (S1384)

300001.5 (S1383)(S1384)
@ SPACER CARB INLET OPENING EXTENDER FITS 30MM TO 37MM OD CARB MOUTH'S 1/17P (CARB/ADP/EXT) (S1383)

CARB/ADP/EXT (S1383)
TOP CABLE ADJUSTER


TOP CABLE ADJUSTER


CHOKE SIDE


Click to enlarge
@ 300012_PICTURED SOMEWHAT MODIFIED_ON A_STOCK_CT70
@ KEIHIN_STYLE SMALL_ROUND MAIN_JETS  1978_to_1994<p>@ ATC70_CT70_TRX70 XR70_CRF70 CT110_TRX90  Z50A_K0_TO_K2<p>(C70_1980_to_83) (CT90K0_CM91) (CT90_1978/1979) J4134 J4138
Click to enlarge
WHATS INSIDE


@ 300012_PICTURED SOMEWHAT MODIFIED_ON A_STOCK_CT70


@ KEIHIN_STYLE SMALL_ROUND MAIN_JETS 1978_to_1994

@ ATC70_CT70_TRX70 XR70_CRF70 CT110_TRX90 Z50A_K0_TO_K2

(C70_1980_to_83) (CT90K0_CM91) (CT90_1978/1979) J4134 J4138

KEI-JETSIZE:
@ XR80 CARB ?


LOTS OF MEASUREMENTS


Click to enlarge
@ SOLDER_ON_INNER THROTTLE_CABLE 1/20W (END) (359E)
@ SHORTING YOUR_INNER_CABLE ? how_do_you know_how_much to_cut_off_?
@ SIDE PULL UNIVERSAL THROTTLE ASSY 7/8" BARS 7/18P (AFT209H)
Click to enlarge

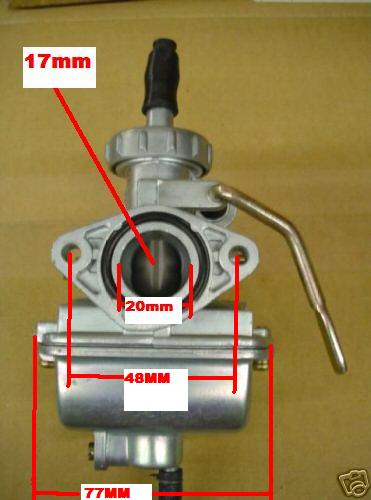

MORE MEASUREMENTS
